Model series SDH-4PB
With 1 or 2 external temperature sensors
Models for 120Vac, 208-250Vac,
12V and 24V AC/DC
Output load :
up to 30 Amp / 250Vac.
Optional Remote Control + Display Panel
Temperature range: -40F (-40C ) to 255F ( 124C )
Higher custom ranges avilable up to 960F ( 515C )
Heating and/or Cooling and differential modes

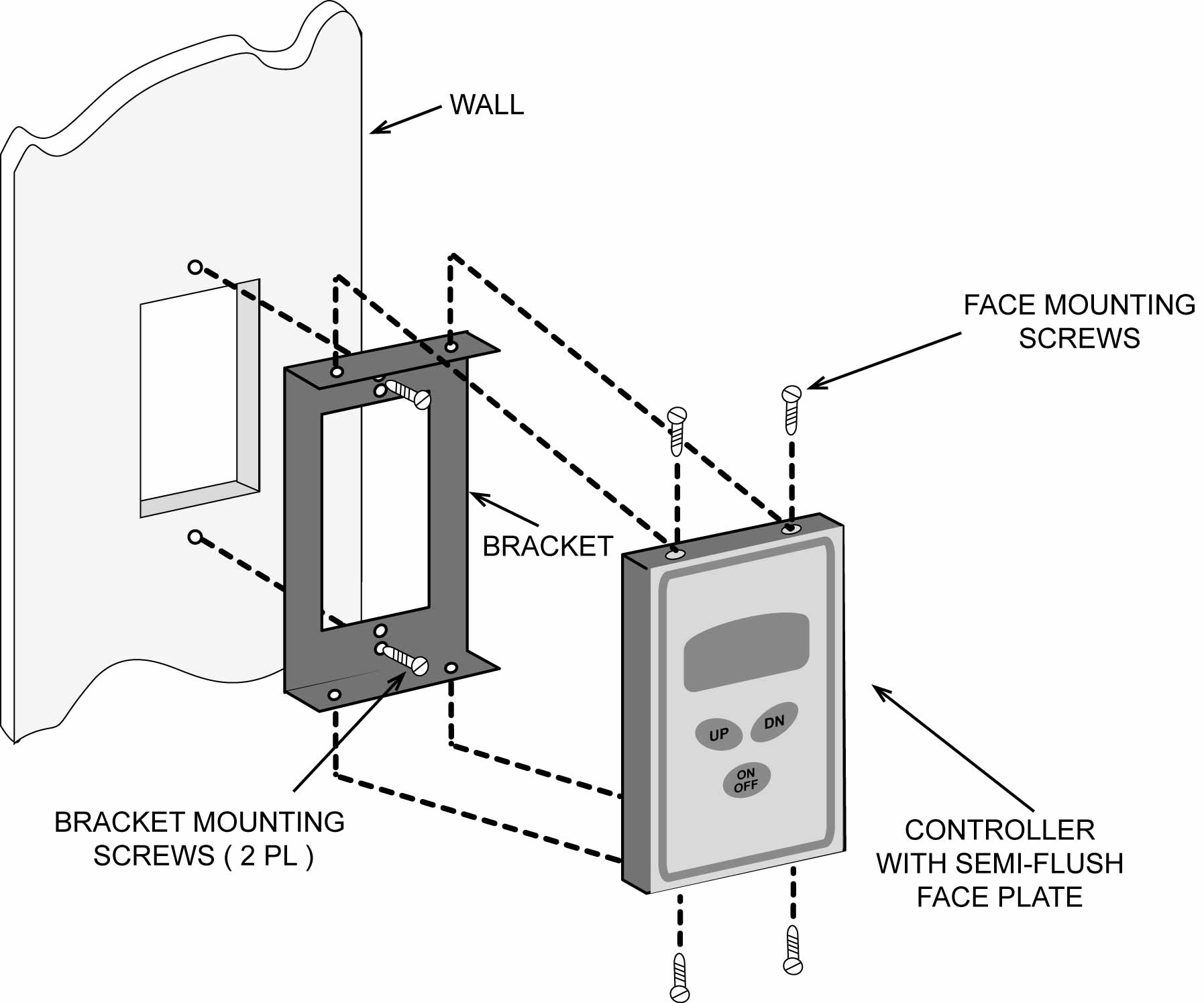

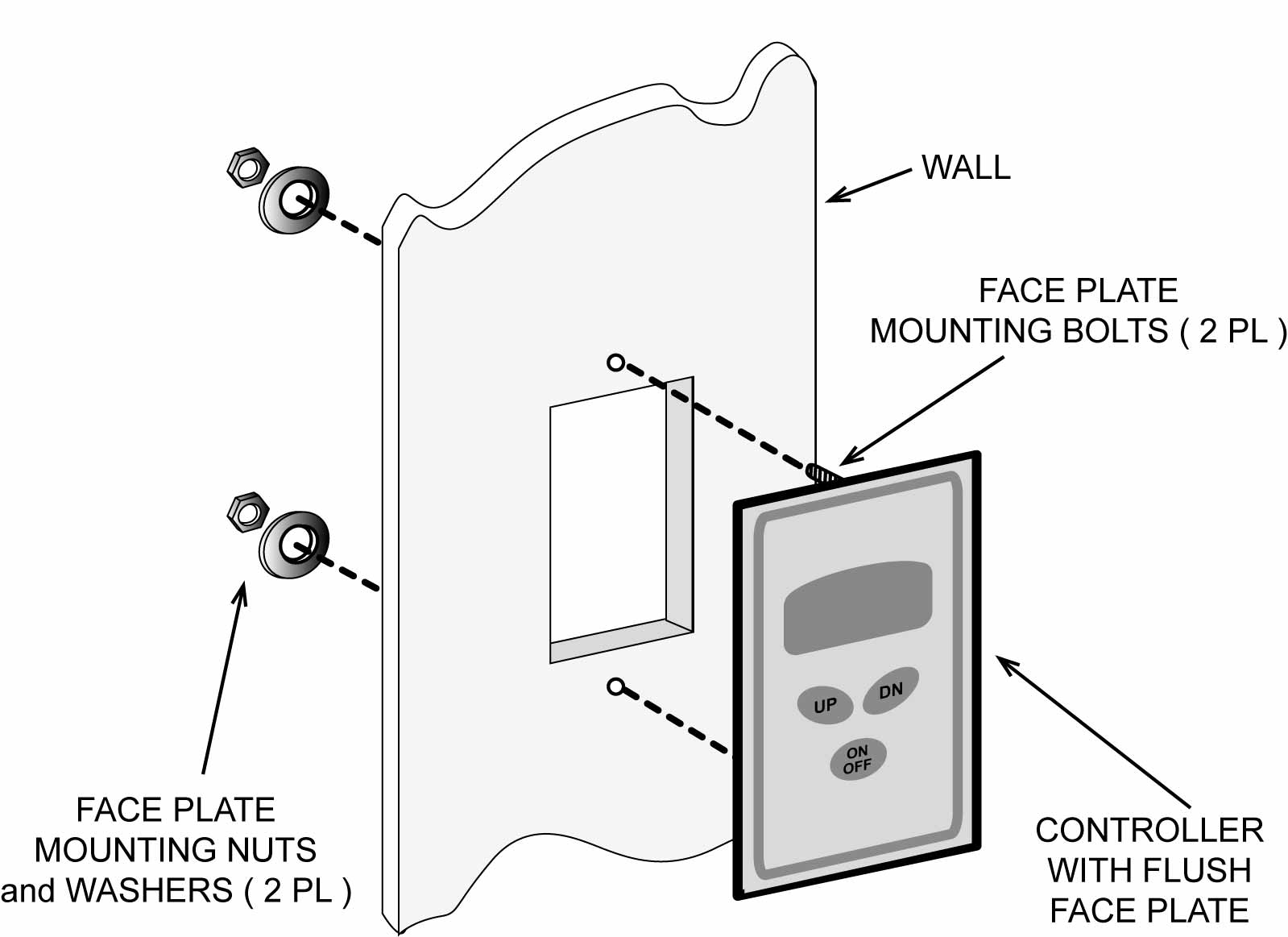

Installation example

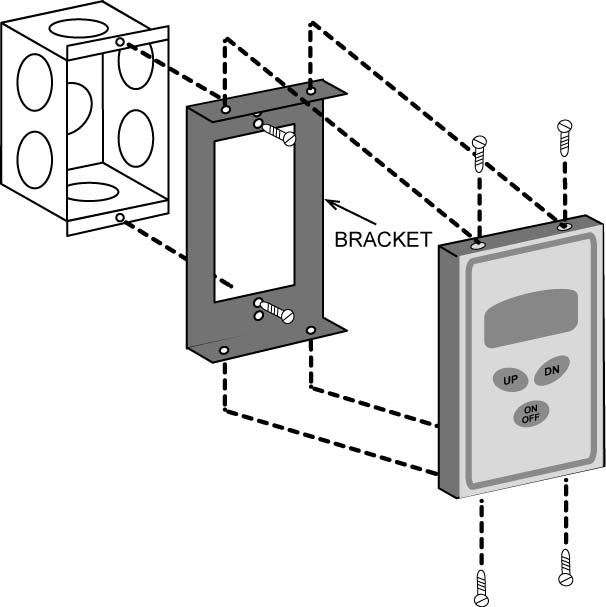

in 1-gang wiring box

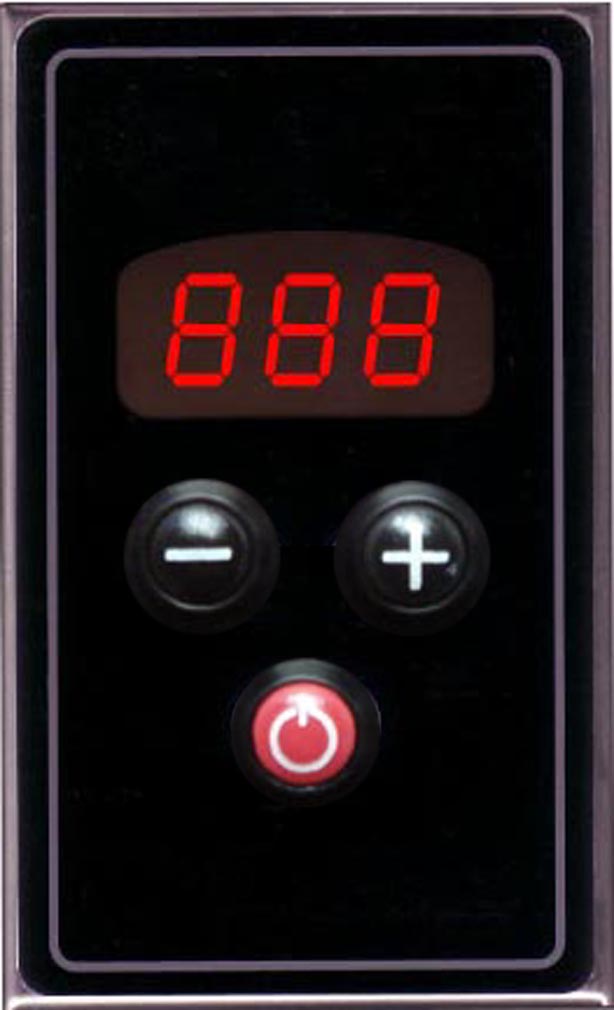

3 push-buttons:
1. CONTROL ON/OFF
2. TEMPERATURE UP
3. TEMPERATURE DOWN

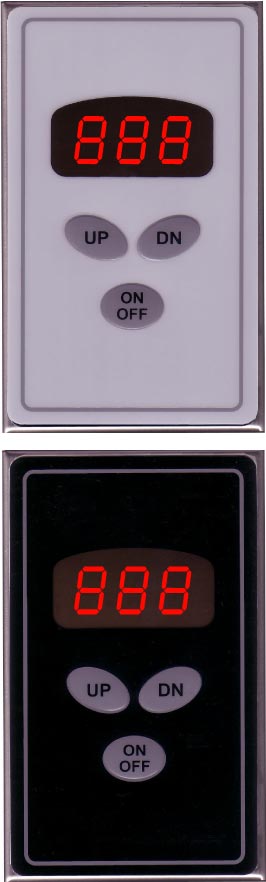

Black, White or Custom
labels available
Metal Face
Dim's: 4.5" x 2.75" x 0.5"
115mm x 70mm x 12mm
Thermostat with Vandal Proof push buttons
APPLICATIONS:
Example of available models
Wiring extendable
up to 500 ft ( 150M)
Optional Plate-Guard
for standard sensor probes.
Plastic model PPP-4
and SS model PPS-4
Optional Plastic Guard
for standard sensor probes.
Model PG-5
More SDH-4 Thermostat Wiring Examples

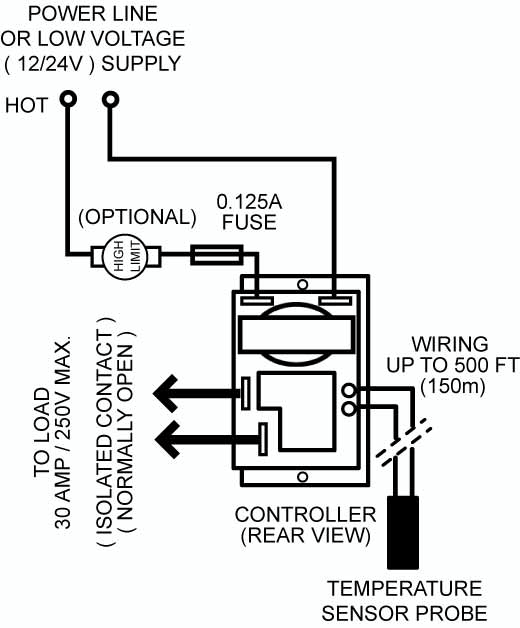

Simple SDH-4PB line thermostat wiring
for up to 30Amp loads
Basic SDH-4PB thermostat wiring
for up to 30 Amps load

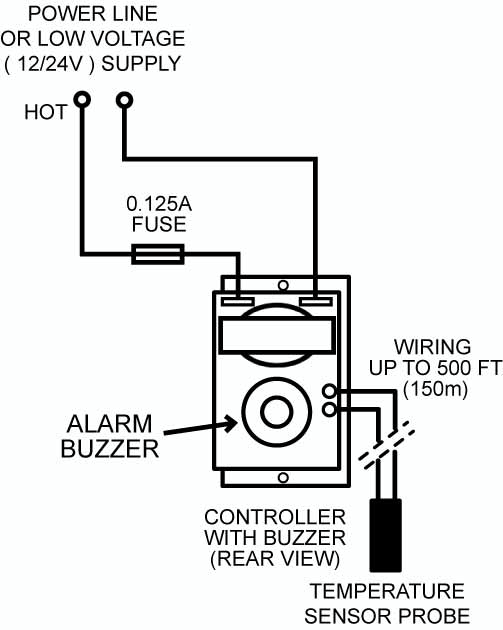

SDH-4PB thermostat wiring
with Alarm buzzer
Extended SDH-4PB thermostat wiring
for very high power loads
using external contactor

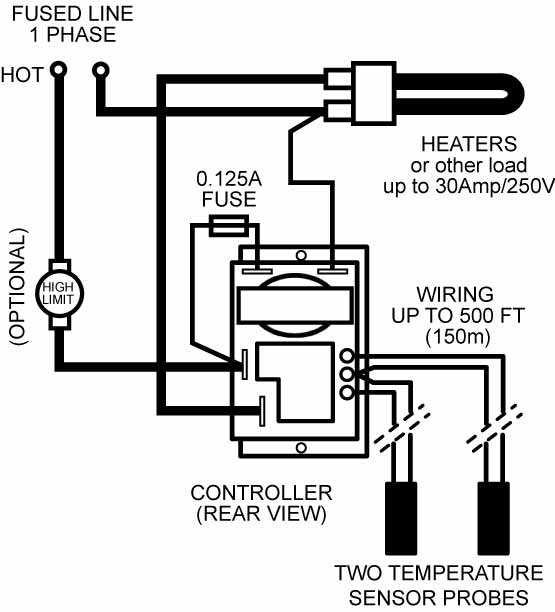

Special SDH-4PB thermostat wiring
for loads up to 30Amp
with two temperature sensors

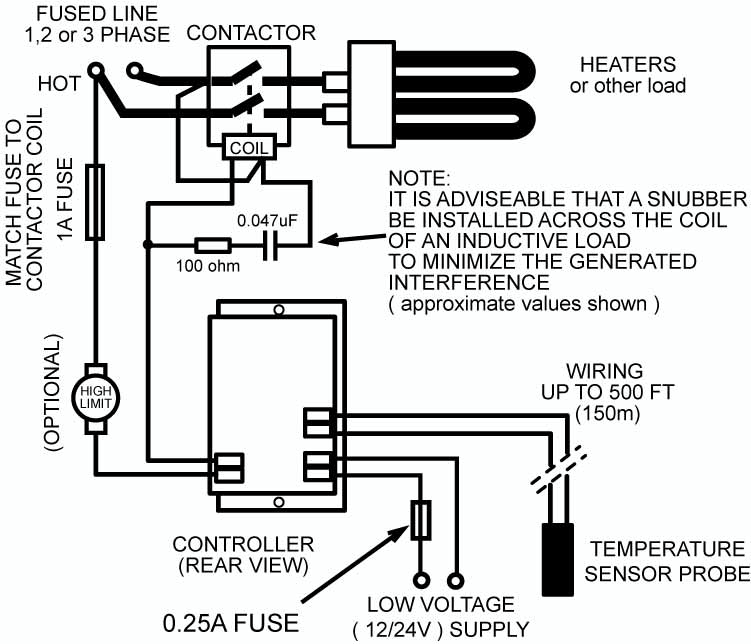

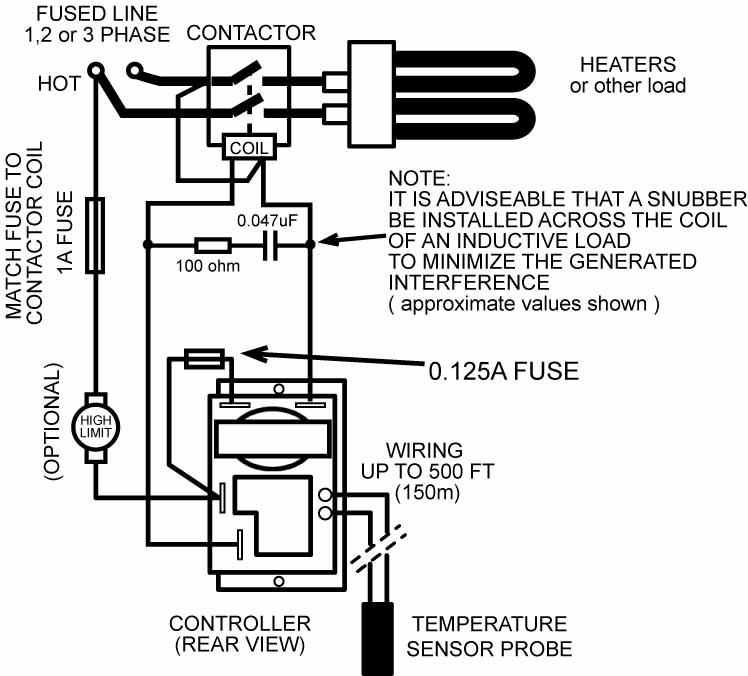

Extended SDH-4PB thermostat wiring
for very high power loads using external contactor
and with separate low voltage supply
Download SDH-4PB Thermostat Specifications
SDH-4PB is a digital temperature controller designed for Heating and/or Cooling.
It has an internal, accurate, programmable thermostat processor, that is self-calibrating and does not require any maintenance or adjustments.
The thermostat controls one on-board relay with contacts rated for up to 30Amp, 250Vac load max. Optionally an internal alarm buzzer or a low power relay can be ordered for special applications to control loads of up to 1Amp, 250Vac max. for instance to activate other external devices.
The high power or the optional low power relay contacts can be wired up to control Heaters, HVAC and other loads like a Fan, Motor, Pump, etc...
The relay contacts can be wired up as completely isolated from the controller's supply, so the supply voltage can be different than the voltages on the load.
In order to switch very high loads, the relay contacts can be wired up to control the coil of an external contactor.

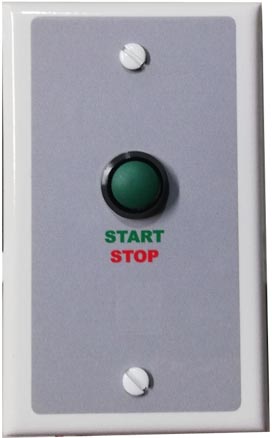

An additional, dry contact input can be ordered for external Start/Stop control switch or other applications, like for instance a water level sensor switch.
Also, an additional, temperature sensor can be installed for special applications like a temperature difference control or to sense the temperature at two separate locations.
The controller is operated and the temperature setpoints are preset by pressing the corresponding keys
on the control panel face. The preset values are stored in internal memory.
A variety of the controller's operating configurations, temperature ranges and limits are also programmable via the face plate keys.
Customized face plates and special, vandal proof push-buttons are available.
The large 3-digit LED display shows temperature preset values, current temperature and other indications of operation. The LED display can be ordered in RED, GREEN or BLUE color.
Note, that SDH-4PB controllers are designed to eliminate almost completely the EMF ( Electro Magnetic Field ) radiation.
